K190 – Grand Multi-Use Service Facility
K190 Stretch Tent is engineered with integrated all-weather ventilation systems and built-in LED lighting, offering consistent airflow and bright illumination to maintain a pleasant and comfortable interior environment. In addition, the K100 features a locator module and a robust mechanical structure, enabling rapid setup and takedown for effortless transport and storage. Overall, the K190 Stretch Tent delivers both functionality and modern aesthetics, making it a versatile outdoor shelter suitable for a wide range of camping and outdoor activity needs.

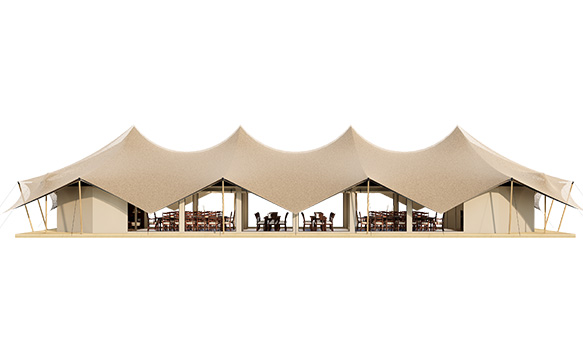

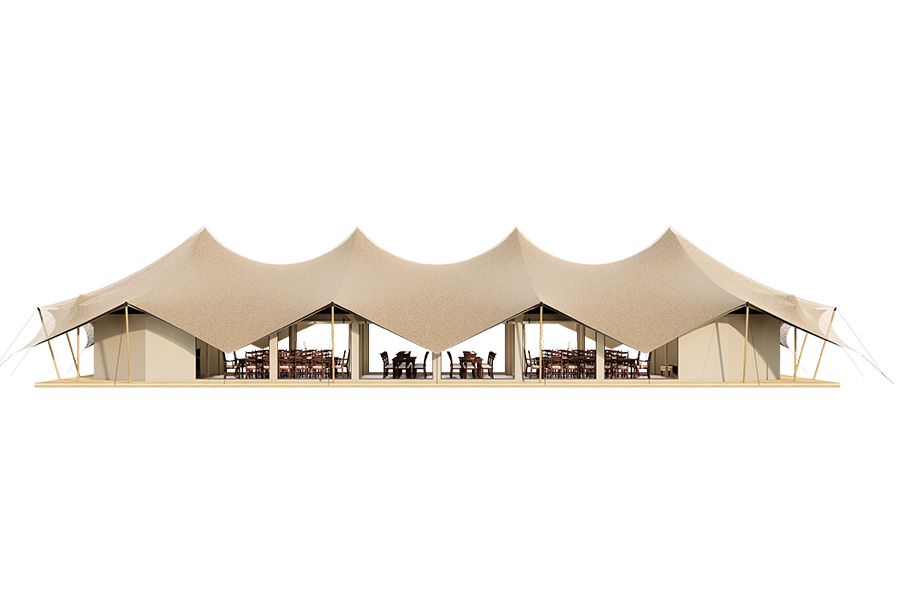

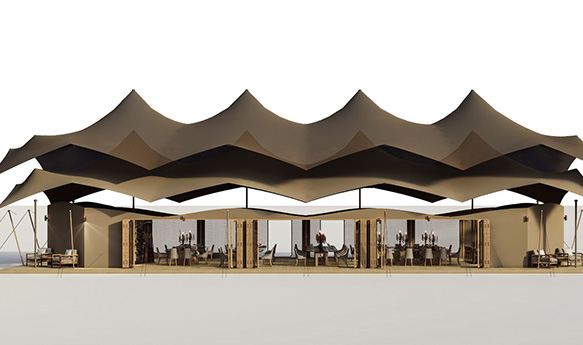

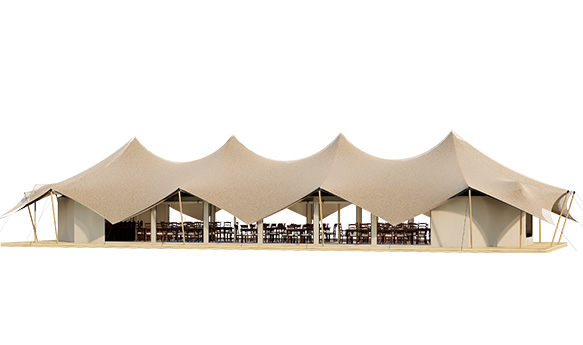

Product Display
Specifications Data
| Projected Area | 15.2 x 26.6= 404.32m² |
| External Size | 10.6m x 28.4m =301m² |
| Indoor Area | 195.7m² |
| Veranda Area | 104.3m² |
| External Height | 5.8m |
| Indoor Height | 4m |
| Material | Mesh Cloth |
| Waterproof | 8000mm |
| Lightfastness | 7(Blue Wool) |
| Color | Khaki, Custom |
| Features | Flame retardant, mould proof, UV resistance, tear resistance |
| Fixing | Aluminum Strips, Ropes |
| Size | 2.8m x 2.5m |
| Material | Oxford Fabric |
| Flyscreen | Yes |
| Wind Resistance | Level 8 |
| Roof Load | 15kg/㎡ |
| Suitable Temperature | 0°C~40°C |
| Lifespan | 10 Years |
| Poles | Scots Pine Wood |
| Pole Size | Dia. 70mm |
| Connectors | Anti-rust Steel Pipe |
| Connecting with | Self-tapping Screws |
| Material | 420g Canvas / 1050g PVDF Arch. Membrane |
| Waterproof | 3000mm |
| Lightfastness | 5(Blue Wool) |
| Color | Khaki, Custom |
| Features | Flame retardant, mould proof UV resistance |
| Fixing | Pipe, Straps |
| Fixing with floor | Wood Strips, Waterproof Sealant |
| Size | 2m x 1.2m |
| Material | Oxford Fabric |
| Cover(Outside) | Clear PVC |
| Cover(lnside) | Oxford Fabric |
| Fixing | Velcro |
| Flyscreen | Yes |
Product Display
